AR2 Pro-450 — CNC Wire Cutting Machine

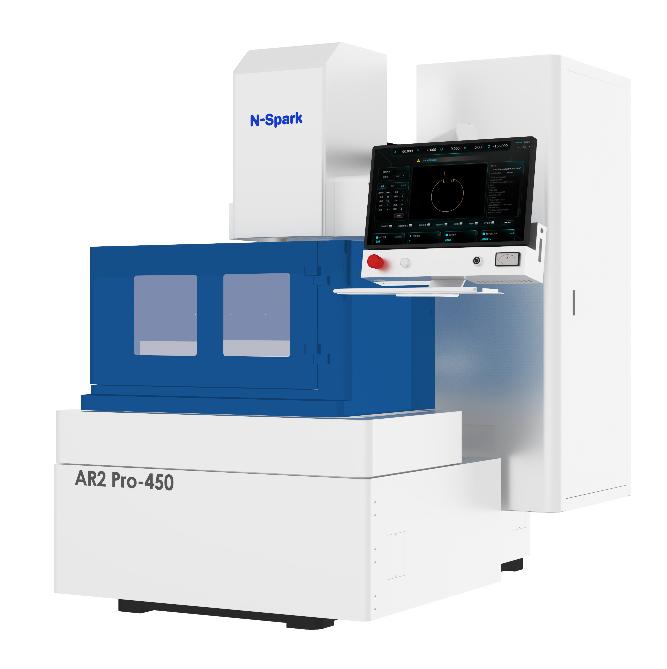

The AR2 Pro-450 is a new-generation medium-speed CNC wire cutting (EDM) machine by Novick Digital Equipment Co., Ltd. Built with an integrated closed-frame structure and Windows 10 control system, it delivers brass-wire-class precision at medium-wire running costs. Available in Singapore through IS Machine Pte Ltd.

Key Advantages

💡

Integrated Closed-Frame Structure:

The AR2 Pro-450 adopts a one-piece integrated structure combining the main machine, electric cabinet, and cantilever console — small footprint, easy to install and debug.

💡

High Precision — Ra < 0.6 μm:

Achieves surface roughness Ra < 0.6 μm with multiple cuts, matching the finish quality of slow-wire (brass wire) machines at a fraction of the running cost. Ideal for mold inserts, precision tooling, and fine-tolerance components.

💡

Windows 10 Control System with 3D Graphics:

Runs on Windows 10 with a 22" LCD display. Features 3D part simulation, automatic taper angle calculation, multi-cavity programming, and G-code / ISO code support.

💡

Non-Electrolytic Power Supply:

The latest non-electrolytic pulse power supply reduces workpiece oxidation and electrolytic corrosion, improving surface quality and extending tool life.

💡

Panasonic 750W Servo & Yintai Ball Screws:

XY axes driven by Panasonic 750W AC servo motors with Yintai precision ball screws (Ø32mm, 4mm pitch) — smooth, accurate axis movement with excellent repeatability.

💡

Spring & Hammer Constant-Tension Wire System:

A spring and weighted-hammer structure maintains constant wire tension throughout the cut, eliminating manual periodic tightening and ensuring consistent processing quality.

Specifications

Machine Dimensions (incl. cabinet): 1900 × 2000 × 2100 mm
Machine Weight: 2000 kg
Worktable Dimensions: 665 × 485 mm
Worktable Height from Floor: 1006 mm
X / Y Axis Travel: 450 × 350 mm
U / V Axis Travel: 50 × 50 mm
Z Axis Travel: 260 mm (motorized)
Max Cutting Taper: ±6° / 80 mm
Max Cutting Thickness: 300 mm
Working Tank (effective cavity): 880 × 560 mm
Max Workpiece Size: 880 × 560 × 300 mm
Max Workpiece Weight: 500 kg
Wire Diameter: Φ0.12 – 0.20 mm (min Φ0.08, max Φ0.25)
Max Processing Speed: 300 mm²/min
Best Surface Roughness: Ra < 0.6 μm (multiple cuts)
Max Processing Current: 15 A
Min. Resolution: 0.001 mm
XY Motors: Panasonic 750W AC Servo
Ball Screws: Yintai, Ø32 mm, pitch 4 mm
Guide-ways: Yintai Precision Linear Rolling
Power Supply: AC 3×415V 50Hz, 2 kVA
Voltage Tolerance: ±10%
Coolant Tank: 670 × 470 × 620 mm, 70 L, 10 μm filtration
Control System: Windows 10, IPC + MCU, 22" LCD, 256 GB SSD

Full Feature List

Integrated Structure: Main machine, electric cabinet, and cantilever console in one unit — saves floor space, simplifies installation.
Non-Electrolytic Pulse Power Supply: Suppresses oxidation and electrolytic pitting; improves surface finish and tool life.
Spring & Hammer Constant Tension: Eliminates manual wire tightening; ensures stable tension throughout reciprocating cuts.
Panasonic 750W AC Servo (XY): High torque, reliable servo drive for precise, repeatable axis positioning.
Yintai Linear Rails & Ball Screws: Taiwan-made precision components; low backlash, long service life.
Centralized Lubrication: XY axes and wire spool share a centralized lubrication system — saves time and extends component life.
Windows 10 Controller: 22" LCD display; USB + LAN file transfer; wireless keyboard and mouse.
3D Graphic Display: Edit and drawing interface shows 3D model for easy observation and adjustment.
Automatic Taper Calculation: Input workpiece thickness; system automatically calculates and applies correct taper.
6 Coordinate Systems: Covers diverse application and processing scenarios.
Multiple-Cut Strategy: Rough + trim passes achieve Ra < 0.6 μm.
Reverse Machining: If wire breaks, system air-cuts back to re-threading point and resumes automatically.
Multi-Cavity Programming: Automatic array and rotation; supports unattended overnight runs.
Power-Off Memory: Auto-saves on power-off; auto-resumes on power-on.
Three-Color Status Light: Built into the logo — shows machine working state without additional warning lights.
Water-Based Coolant: Environmentally friendly, odor-free, lower running cost than oil-based coolant.

Layout & Dimensions

AR2 Pro-450 Side View Layout — height 2080 mm — Side view — height 2080 mm

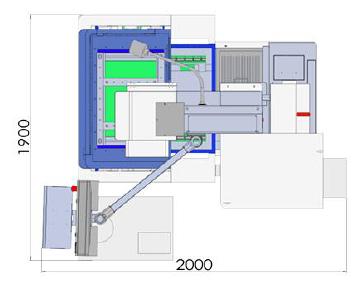

AR2 Pro-450 Top View Layout — footprint 1900 × 2000 mm — Top view — footprint 1900 × 2000 mm

💡
